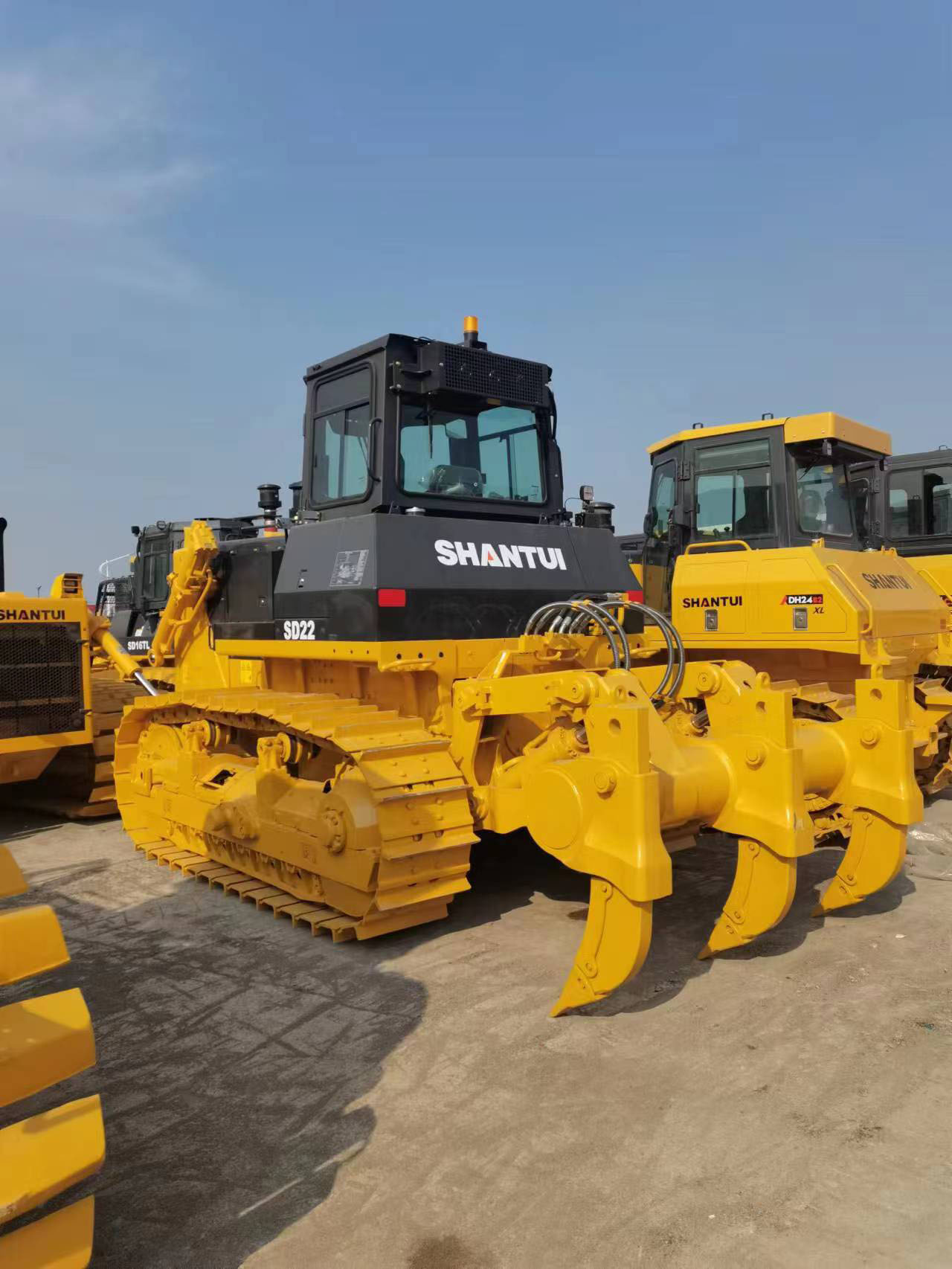

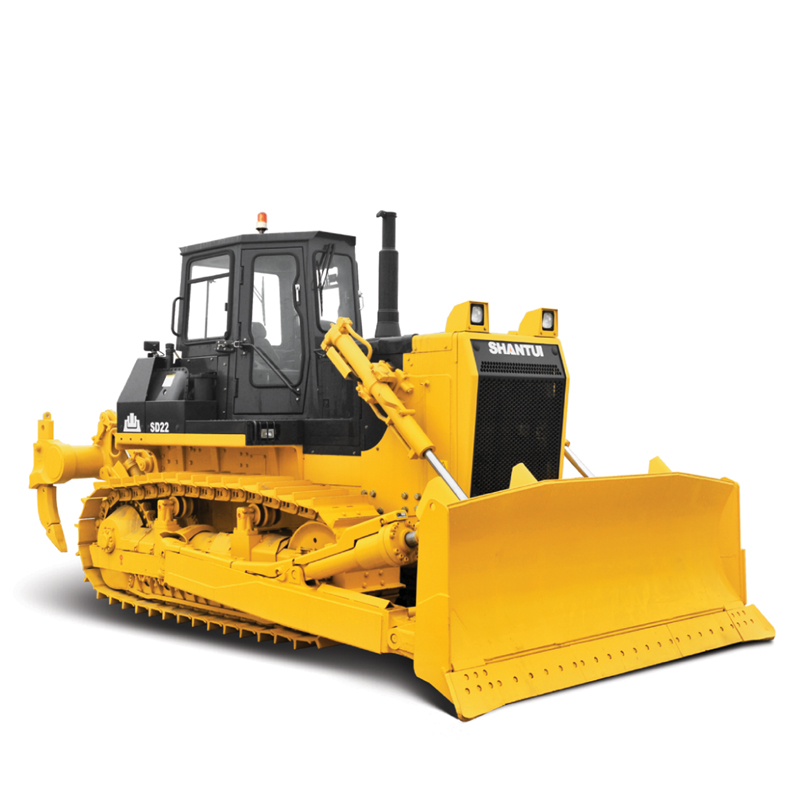

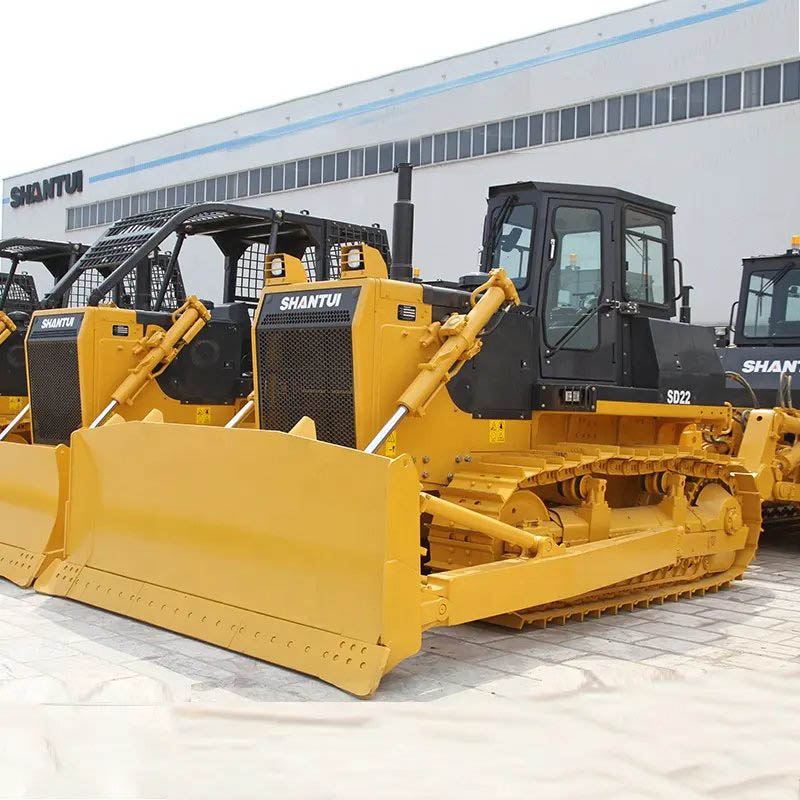

Shantui 220HP SD22 Standard Bulldozer
Engine model: Cummins NT855-C280S10（Optional Weichai WD12G240E26）
Net Power(kW): 164/220
Dozing capacity (m3): 6.4(Straight tilt blade);7.5(U-blade)；7.0(Semi U blade)；4.7(Angle blade)
Operating weight(kg): 23400
Product Description
Chongqing Cummins NT855-C280S10 engines feature the high power, efficiency and energy saving.
The effective supercharger not only improves and widens the effective zones of engine, but also drops the fuel consumption by 12-21g/ kW. H.
The advanced lubrication system could enable the engine parts to work under the constant oil temperature, the low oil pressure and the varied flow, reducing the engine friction power and thus prolonging the engine service life.
The strength material and the newly-structured cylinder body and cylinder cover make the engine more reliable and energy-saving and then realize the sufficient combustion and the lower emission within the wide range of RPM and load.
PARAMETER
Parameter | SD22 |
Overall weight(kg) | 23450 |
Engine brand | Cummins NT855-C280S10/Weichai WP12G240E306 |
Rated power/rated speed(kW/rpm) | 175/1800 |
Machine external dimensions(mm) | 6060*4200*3402 |
Track center distance(mm) | 2000 |
Track shoe width(mm) | 560/610/660 |
Ground contact length(mm) | 2430 |
Fuel tank capacity(L) | 450 |
Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade |
Blade capacity(m³) | 4.6 |
Emissions (Indicated as per international standards) | Eu stageⅡ |

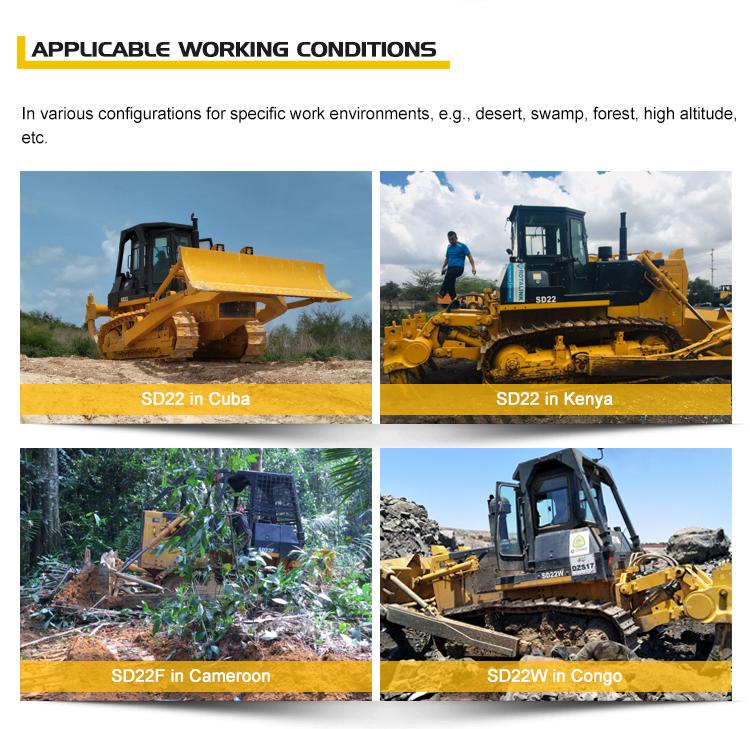

Shantui Bulldozer Application

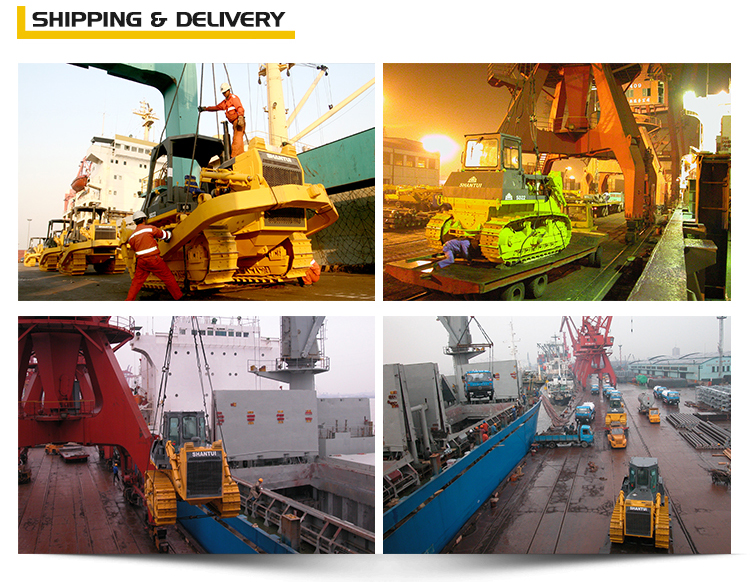

Packaging & Shipping
Company Information
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile,Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
What spare parts can you supply?
All kinds of spare parts of XCM G, SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SDL G, LONKING, XGMA, CUMMINS ENGINE, ZF GEAR BOX, etc.
